Belva BXD3K Class-D Monoblock Car Audio MOSFET Amplifier 3000W w/ Remote Subwoofer Control
Product details
| Management number | 238008294 | Release Date | 2026/07/11 | List Price | US$44.00 | Model Number | 238008294 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The new Belva BXD3K is a Class D amplifier utilizing a small but efficient MOSFET transistor. MOSFET amplifiers are designed to process digital signals with lower power consumption. By using less power, MOSFET amplifiers lose less energy to heat dissipation. As a result, Class D amplifiers such as the Belva BXD3K have a higher efficiency rate of 90% than their AB class counterparts, which feature an efficiency rate of 50 to 70%.
- Product Highlights
- 750 watts x 1 channel @ 4 ohms
- 1500 watts x 1 channel @ 2 ohms
- 3000 watts x 1 channel @ 1 ohms
- Total Peak Power: 3000 watts
- Class D 1 ohms Stable Monoblock
- Product Details:
- BX Series Class D 1 ohms Stable Monoblock Amplifier
- Power Rating:
- 4 ohms: 750 watts x 1 channel
- 2 ohms: 1500 watts x 1 channel
- 1 ohms: 3000 watts x 1 channel
- Total Peak power output: 3000 watts
- Pulse Width Modulated MOSFET power supply
- LED Power/Protect Light

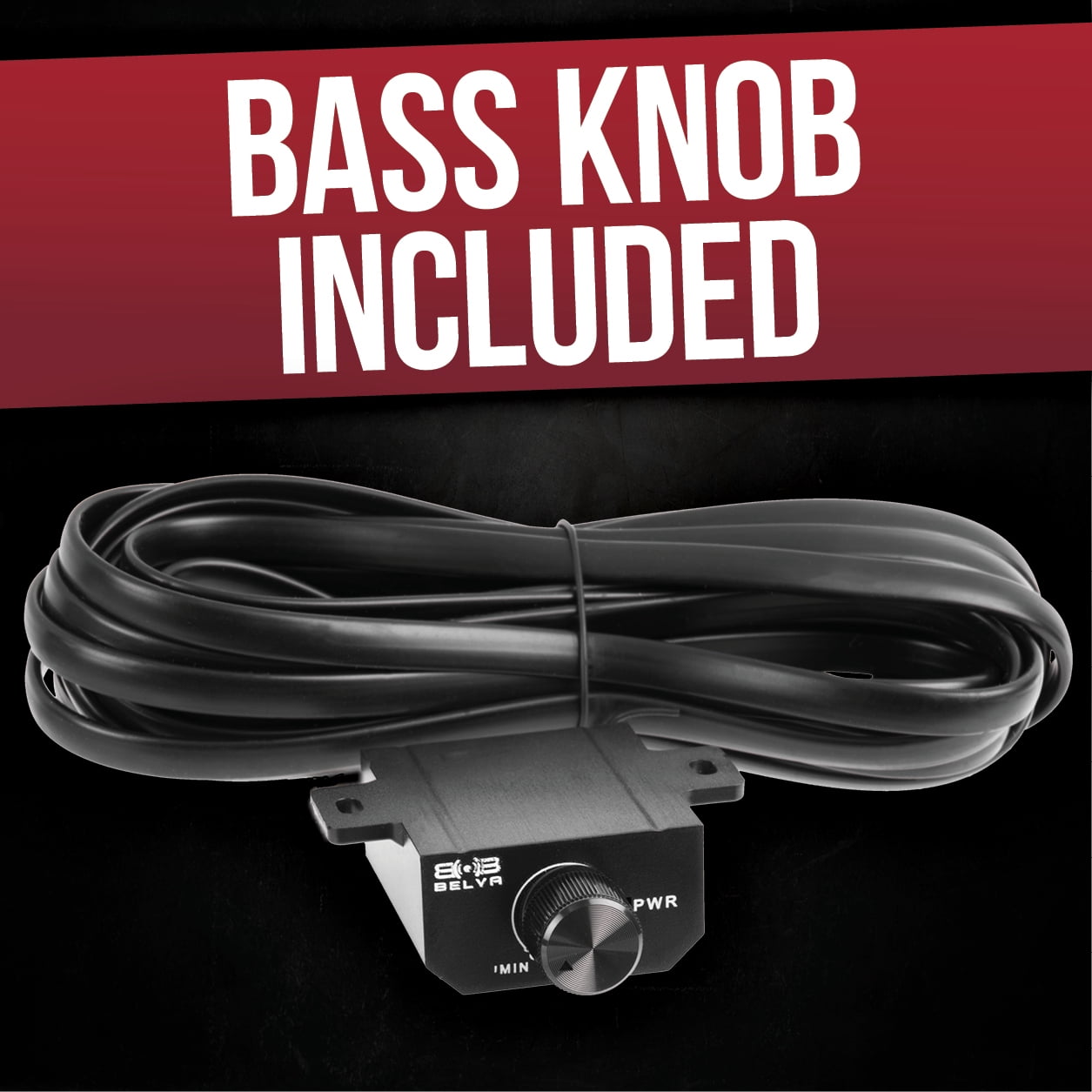

- Wired remote bass level control included
- Soft start turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Input sensitivity:
- Low level: 200mV - 8 volts
- Frequency Response: 10 - 250 Hz
- Total Harmonic Distortion (THD): 0.05%
- Signal to Noise Ratio: 96 dB
- Variable low-pass filter: 50 - 250 Hz
- Variable Bass Boost: 0 - 18 dB
- Fuse Rating: 120A
- 4 AWG gauge power and ground wiring is recommended for installation.
- Dimensions: 7.48" W x 11.02" L x 2.00" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- Power Specifications - Subwoofer Channel
- Peak Power @ 4 ohm - 750 watts x 1 channel
- Peak Power @ 2 ohms - 1500 watts x 1 channel
- Peak Power @ 1 ohm - 3000 watts x 1 channel
- Amplifier Specifications
- Series - BX Series
- Amplifier Class - D
- Number of Channels - 1 - Mono
- Total Peak Power Output - 3000 watts
- Maximum Input Gauge Size - 4 AWG
- Minimum Impedance Unbridged - 1 ohms
- Frequency Response - 10 - 250 Hz
- THD at Rated RMS Power - 0.05%
- Speaker Level Inputs - No
- Preamp Outputs - No
- Built-in Crossover - Low-Pass (LP)
- Low-Pass Crossover Frequency - 50 - 250 Hz
- Signal-to-Noise Ratio - 96 dB
- Bass Boost - 0 - 18 dB
- Remote bass/level controller - Yes
- Fuse Rating - 40A x 3
- Total Fuse Rating - 120A
- Strappable - No
- Amp Bluetooth Connectivity - No
- Hi-Res Certified - No
- Low-Level Input Sensitivity - 200mV - 8 volts
- What is in the box?
- Paperwork - User manual, Warranty/Registration card
- WITB: Amplifiers - Amplifier, Mounting Brackets, Wired gain knob (wire separate), Gain knob wire, Mounting screws (6), One spare fuse
- Warranty and Return Policy
- Parts Warranty Duration - 1 year
- Labor Warranty Duration - 1 year
- Warranty Provider - Manufacturer
| Brand | Belva |
|---|---|
| Rms power rating | 750 W |
| Channels | 1 |
| Impedance | 4 ohm |
| Features | Custom-Fit |
| Peak audio power handling | 3000 W |
| Input/output type | Wireless |
| Rec. use | Car Audio |
| Color | Black |
| Audio output | 3000 W |
| Total harmonic distortion | 0.05 % |
| Signal-to-noise ratio | 96 dB |
| Product line | BX-Series |
| Items included | Bass Knob for Precision Tuning |
| Accessories | Remote Subwoofer Level Control |
| Input/output direction | Input |
| Model | BXD3K |
| Manufacturer | Belva |
| Vehicle type | Car |
| Vehicle fitment type | Universal |
| Color category | Black |
| Has nrtl listing certification | N |
| Height | 3.11 in |
| Dimensions | 7.48" W x 11.02" L x 2.00" H |
| Assembled product weight | 6.59 lb |
| Volts | 16 V |
| Amps | 120 Amps |
